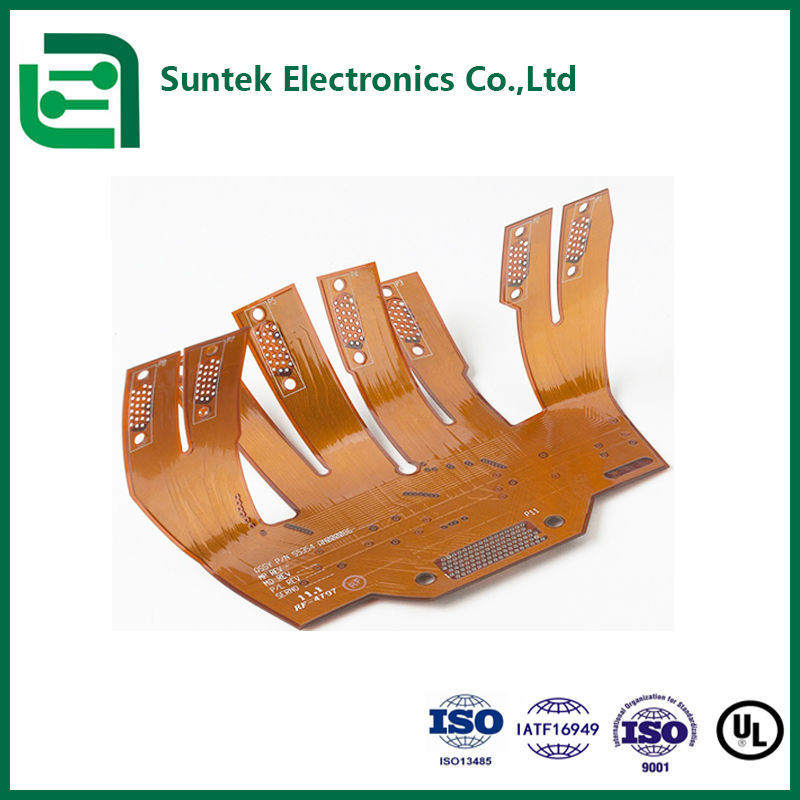

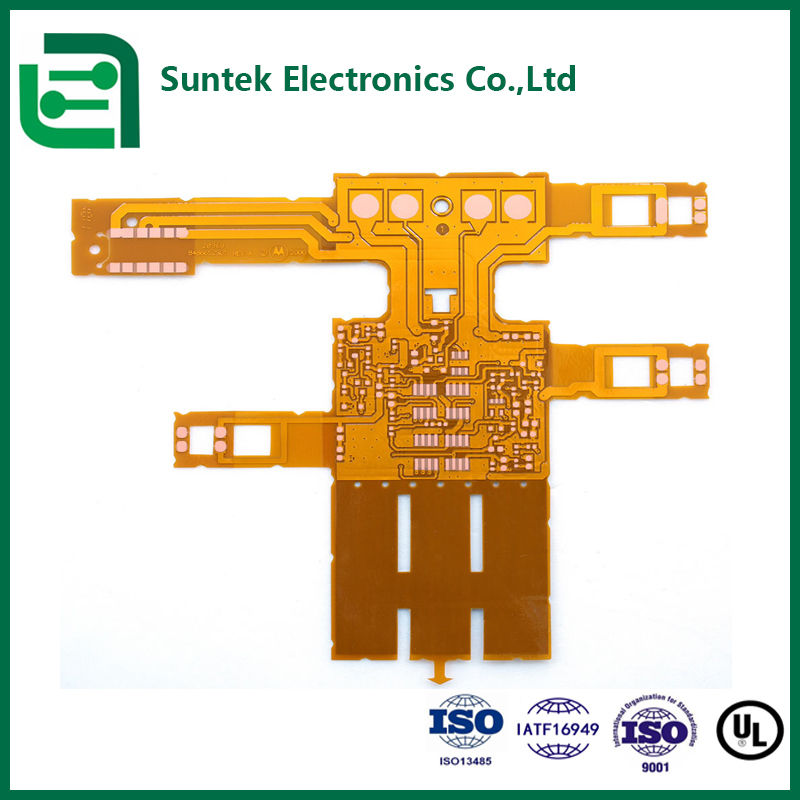

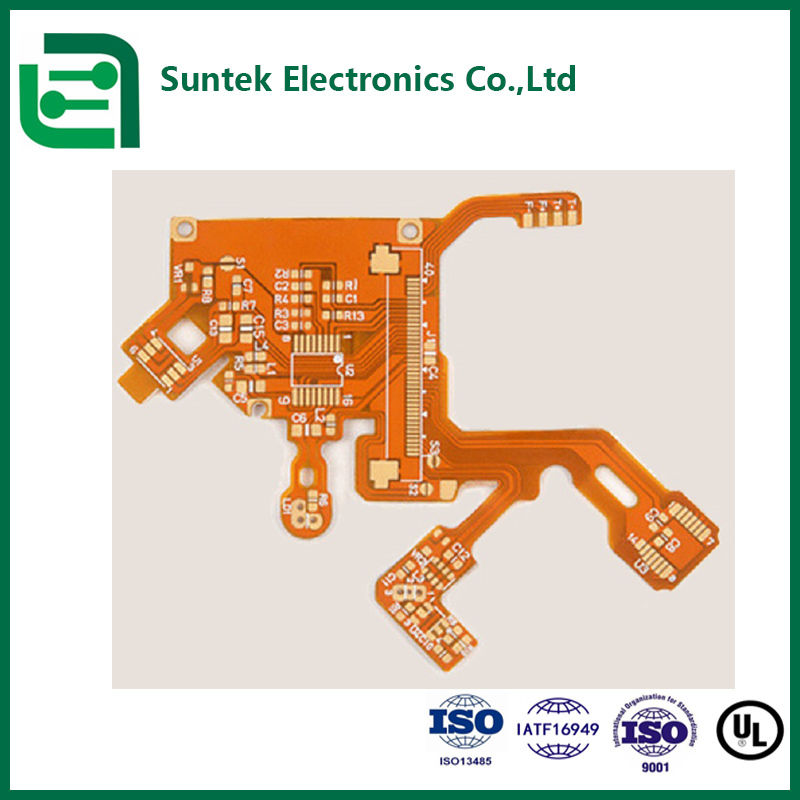

Multilayer Flexible PCB Assembly Service RoHS UL Certification
Suntek Contract Factory:
Suntek Group is a leading supplier in EMS field with one-stop solution for PCB/FPC
assembly, Cable assembly, Mix technology assembly and Box-buildings.
Suntek Electronics Co., Ltd, as the major facility, located in Hunan Prov,China;
BLSuntek Electronics Co., Ltd, as the new facility,located in Kandal Prov,Cambodia.
Capabilities overview:
| Layers: |
Rigid PCB 2 - 40 + Layers, Rigid-flex PCB 1 - 10Layers |
| Panel Size(max): |
21" x 24" |
| PCB Thickness: |
0.016" to 0.120" |
| Line & Spaces: |
0.003" / 0.003" Inner Layers; 0.004" Outer Layers |
| Hole Size: |
0.006" Thru Hole (Finished Size) and 0.004" Buried Via |
| Materials: |
FR4, High Tg, Rogers, Halogen-free material, Teflon, Polyimide |
| Surface Finishes: |
ENi/IAu, OSP, Lead-free HASL,Immersion Gold/Silver, Immersion Tin |
| Special Products: |
Blind/ Buried Via(HDI 2+N+2), Rigid Flex |
Application:
Packing and Shipping:
Flexible PCB Assembly Packaging and Shipping Packaging:
The Flexible PCB Assembly product will be packaged in a sturdy cardboard box to ensure safe transportation. The box will be sealed with tape to prevent any damage during shipping.
The product will also be wrapped in bubble wrap to provide extra protection against potential impact and vibration during transit.
Each box will be labeled with the product name, quantity, and handling instructions to facilitate easy identification and handling.
Shipping:
The product will be shipped via a reliable and trusted courier service to ensure timely and secure delivery to the customer.
The shipping address and contact information will be double-checked to ensure accurate delivery. The product will be insured during transit to protect against any unforeseen events.
A tracking number will be provided to the customer once the product has been shipped, allowing them to track their order and ensure its safe arrival.
Upon delivery, the customer will be required to sign for the package as proof of receipt.
Our company provide:
-PCB/FPC fabrication
-Components sourcing
-PCB/FPC assembly
-Custom cable/harness assembly
-Box build
Services as below:
-SMT, THT, BGA,0201 Chips assembly
-AOI, X-Ray, ICT, FT, Burn-in
-Conformal coating or gluing
-High-mix, small to medium volume
With certification by ISO9001, ISO13485, TS16949 and UL.
Our Advantage :
Quick response
Reasonable price based on good quality
Provide one-stop service(components, OEM)
Reliability
All products made are according to your design files. We follow your product files in customizing PCBs and PCB assemblies. we assurance that all items come with 1-year warranties.
Confidentiality
We protect the intellectual property for our customers in the whole process. All employees have a strict sense of confidentiality, and working under strict confidentiality agreement.
Flexibility
Custom PCB prototype ,small pcb assemblies orders,such as SMD, BGA and through-hole. PCB prototype leadtime of 3 to 5 working days. PCBA standard production leadtime of 7-10 working days.
What Suntek Can Offer:
1. PCB and FPC bare board
2. PCB and FPC assembly
3. Components purchasing and matrials customization
4. One-stop of turnkey box build assembly
5. Mixed technology mix assembly
6. Cable assembly and wire harness
7. Low/mid/high volume PCB assembly
8. BGA/QFN/DFN WITH X-ray insepction
9. IC programming/AOI/ICT/Functional test
Our Factory Pictures:
With ISO9001:2015,ISO13485:2016,IATF 16949:2016 and UL E476377 certified:
