30L Max Layer Multilayer PCB Assembly with 1500*1200mm Max Size and +/-10% Impedance Control

30L Max Layer Multilayer PCB Assembly with 1500*1200mm Max Size and +/-10% Impedance Control

30L Max Layer Multilayer PCB Assembly

1500*1200mm Max PCB Assembly

+/-10% Impedance Control PCB Assembly

Herkunftsort:

China/Kambodscha

Markenname:

Suntek

Zertifizierung:

ISO9001, ISO13485, TS16949 and UL E476377

Modellnummer:

SE45

Kontakt mit uns
Bitte um ein Angebot
Einzelheiten zum Produkt
Grundmaterial:
FR4, Rogers, Halogenfrei
BUD-UP-Material:
RCC,FR4
Maximale Schicht:
30l
Max.PCB-Größe ((mm):
1500*1200 mm
Basis-Kupfergewicht:
1 / 4OZ-2OZ
Impedanzkontrolle:
+/-10 %
Oberflächenbeschaffenheit:
Einheitliche Datenbank für die Bereitstellung von Daten über die Datenbank
Toleranz von PTH:
+/- 0,05 mm
Zahlungs- und Versandbedingungen
Min Bestellmenge
5 Stück
Preis
1-100USD/PCS
Verpackung Informationen
Vakuum, Antistatik, ESD, Kartons
Lieferzeit
1 Woche nach allen gesammelten Komponenten
Zahlungsbedingungen
T/T,T/T,Paypal
Versorgungsmaterial-Fähigkeit
100 Prozent/Stunde
Beschreibung des Produkts
Multilayer PCB Assembly Manufacturer New Energy Circuit Board With Impedance Control
Suntek Group is a leading supplier in EMS field with one-stop solution for PCB/FPC assembly, Cable assembly, Mix technology assembly and Box-buildings.
We have 2 manufacturers, one in China, other one in Cambodia.

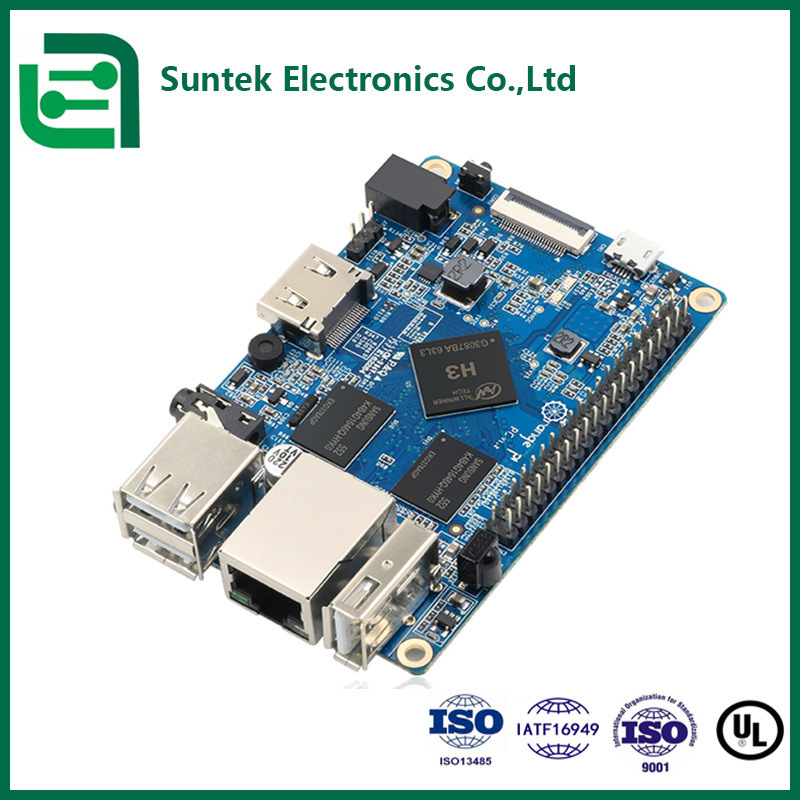

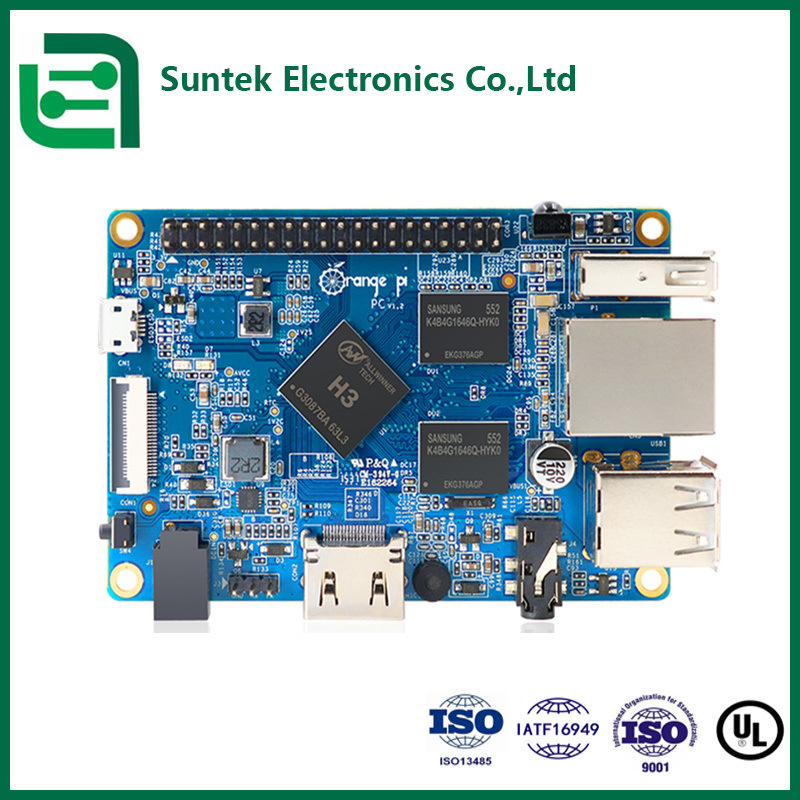

30L Max Layer Multilayer PCB Assembly with 1500*1200mm Max Size and +/-10% Impedance Control 0 30L Max Layer Multilayer PCB Assembly with 1500*1200mm Max Size and +/-10% Impedance Control 1
PCB-PCBA Applications:
  • Automobiles, Machinery
  • Electronical machine, Projector
  • Advertising machine, Monitor, Home appliance
  • Water Dispensers, Computer, Motherboard
  • Military equipment, Air conditioner
  • Communications-equipment, Power device, etc.

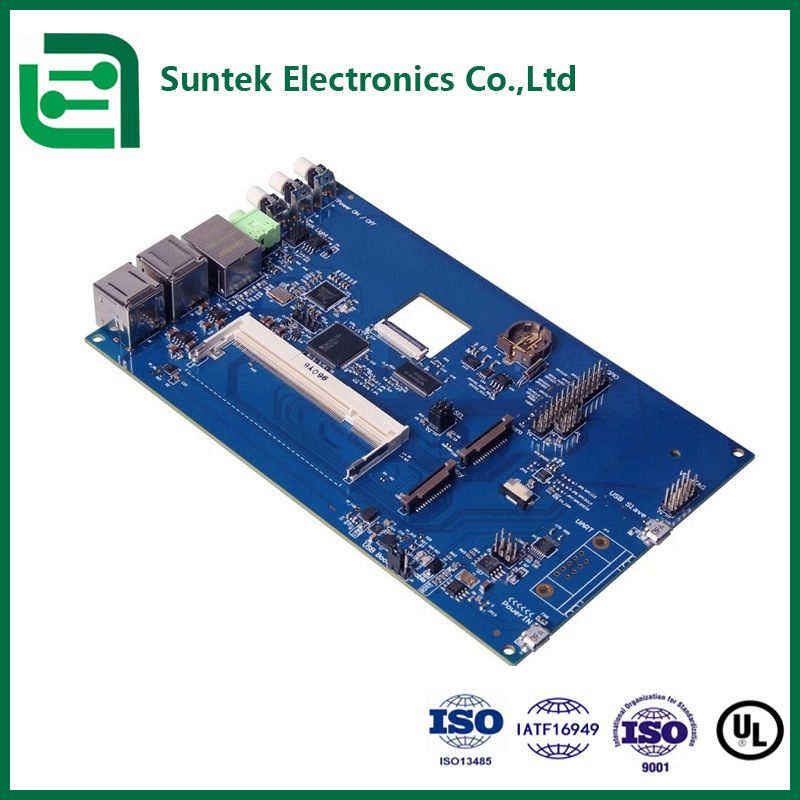

30L Max Layer Multilayer PCB Assembly with 1500*1200mm Max Size and +/-10% Impedance Control 2
Frequently Asked Questions
Q1: What files do you use in PCB fabrication?
A1: Gerber, BOM, Drawings.
Q2: How do you make sure the quality?
A2: Our Product is all 100% E-tested. PCB Assembly are with 100% AOI, ICT, FT and Visual checking, 100% X-ray for BGA.
Q3: Can we visit your company?
A3: Of course, Welcome to visit our company, Suntek located in Xingsha Industrial Park, Changsha, Hunan province, China.
Q4: What is the lead time?
A4: It takes 3-5 working days for sample, 7-10 working days for batch production based on files and quantity. It takes 15-20 working days for PCB assembly.
Q5: Will you keep our information and files secret?
A5: Sure, It is our basic principle to keep business secrets to protect our customers' designs. NDA can be signed at any time.
Q6: How to work with you?
A6:
- Email and send us the PCB layout file, BOM list
- We will provide reply confirmation within 12 hours and reply to the offer within 3-5 days
- Waiting for your company to confirm the price, order and payment terms
- We will proceed the order
